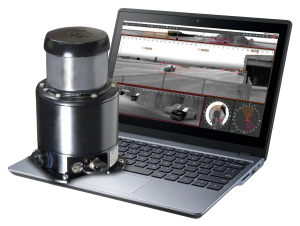

ARXeagle M
The ARXeagle M wide-area surveillance system provides automatic 360° intrusion detection and tracking of multiple threats to provide powerful situational awareness through 360° with panoramic visualization of the surroundings. The ARXeagle M acquires real-time full panoramic images up to 1.5 MPixels 24/7 and as a passive thermal sensor is invisible to intruders, not vulnerable to camouflage nor jamming. ARXeagle M continuously rotates at up to 1 revolution per second for a 360° azimuth coverage and will detect a human within a radius of up to 700 m and a vehicle up to 1.4 km. The ARXeagle M 360° infrared camera is far more sensitive and convenient than any radar and with its panoramic view provides complete situational awareness in comparison to PTZ cameras, which have a limited field-of-view.
The ARXeagleMcan perform multi-event detection and tracking over extremely large areas in daylight, total darkness, fog, smoke, as well as wet, hot and cold weather conditions. It can be used as a reliable and cost-effective standalone perimeter security solution, as well as an added layer of capability to systems already in operation. No poachers, Zama Zama’s or cable thieves can hide from this system, any time of day or night.
ARXtrack also offers data integration to
GPS, AIS (automatic identification system), ADS-B (automatic dependent surveillance – broadcast), radar and is fully ONVIF compliant for interaction with camera Management Systems (CMS). The software can automatically control PTZ systems for target identification, has full forensic capabilities with timelines, sequence storage and playback functions within the user-friendly user interface. The unique GUI provides a real-time panoramic display of multiple threats, thanks to a 360° strip, annular, radar and zoom views to ensure complete situational awareness.

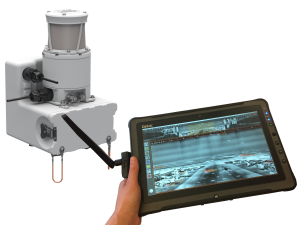

Mobile Deployment Kit for ARXeagle M
The ARXeagle M “Mobile Deployment Kit”, fitting into a backpack, is an ingenious addition to the ARXeagle solution,
making complete situational awareness, rapid deployment and response of tactical teams possible. Team leaders can now receive alerts on their rugged tablet via the wireless link, that allows them mobility, while being assigned to other functions in parallel. Another advantage is the low bandwidth, which allows access to the camera from one or several remote-control centres.
The kit includes
A military battery enabling autonomy for 6 hours of operation
Integrated with our state of the art ARXtrack image processing software, which is compatible with Windows based computers, we provide automatic long-range threat Detection, Recognition and Identification. ARXtrack automatically detects and tracks an unlimited number of ground, air and maritime threats simultaneously for fully autonomous surveillance and thanks to the high resolution, threats can be identified at extreme distances. The software’s unique detection and tracking algorithms ensures an ultra-low False Alarm Rate (FAR) and provides excellent real-time, 360° surveillance visualisation within the fully customizable Graphical User Interface.

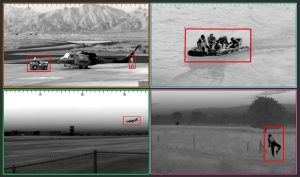

ARXtrack ensures complete situational awareness with real time panoramic GUI display in 360° strip, annular, radar & zoom views, as well as automatic designation and tracking of an unlimited number of targets.
The system capabilities further include
ARXtrack Managersoftware is available for the management of multiple ARXeagle devices, centralizing data from all ARXeagle devices on the network into a common Graphical User Interface. The software provides a global overview of all the threats detected by the ARXeagle devices on the network with detailed imaginary available in real-time.
Advantages
Cost-effective from a TCO (total cost of ownership) perspective taking infrastructure and maintenance into account
Active Implementations
