ARXeagle S





The ARXeagle S 360° infrared sensor is the best Infrared Search & Track (IRST) on the market with the high resolution and long range capabilities. This high-resolution panoramic thermal camera captures full 360° images in real-time 24/7 at a resolution of 30 MPixels and a maximum refresh rate of 2 Hertz.  The cooled, Medium-Wave Infrared (MWIR) sensor can detect a human within an 6 km radius and a vehicle up to a 12 km radius.  The completely passive thermal sensor is invisible to intruders, not vulnerable to camouflage nor jamming, and operates 24/7, whatever the weather.



The ARXeagle S 360° infrared camera is far more sensitive and convenient than any radar and with its 360°, panoramic visualization of the surroundings provides complete situational awareness with automatic 360° intrusion detection and tracking of multiple threats in the surrounding area.



Compact and robust, ARXeagle S can quickly be deployed to perform multi-event detection over extremely large areas in daylight, total darkness, fog, smoke, as well as wet, hot and cold weather conditions. It can be used as a reliable and cost-effective standalone perimeter security solution, as well as an added layer of capability to systems already in operation. No poachers, Zama Zama’s or cable thieves can hide from this system, any time of day or night.

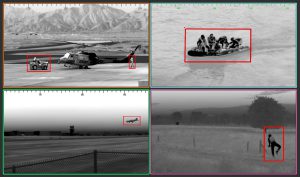

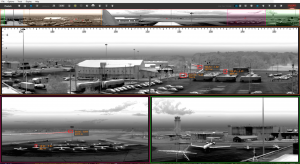

ARXtrack ensures complete situational awareness with real time panoramic GUI display in 360° strip, annular, radar & zoom views, as well as automatic designation and tracking of an unlimited number of targets.



The system capabilities further include



Immediate threat location (azimuth, elevation, distance)

Forensic capabilities like timeline, sequence storage and playback in GUI

Multiple threats displayed on situation map

Spatial and temporal bookmarks

Automatic control of PTZ systems for target identification

Fine image stabilization

GPS, AIS (automatic identification system), ADS-B (automatic dependent surveillance – broadcast) and radar data integration

ONVIF compliance for integration of devices into Camera Management Systems (CMS)



ARXtrack Manager software is available for the management of multiple ARXeagle devices, centralizing data from all ARXeagle devices on the network into a common Graphical User Interface.  The software provides a global overview of all the threats detected by the ARXeagle devices on the network with detailed imaginary available in real-time.



Advantages



Cost-effective from a TCO (total cost of ownership) perspective taking infrastructure and maintenance into account

Automatic detection & tracking of multiple simultaneous threats

Reliable and consistent

Long range surveillance

Full 360° panoramic visualisation

Compact and robust for fast deployment

Fully passive and undetectable

Exceptional performance during day, night, humid & warm conditions

Active Implementations



General wide-area surveillance

360° threat detection

24/7 perimeter security

Airport surveillance with air traffic data integration

Critical infrastructure surveillance

Power stations, wind and solar farms

Railway stations and infrastructure

Mine infrastructure and perimeters

Prisons and hospitals

Self-protection of ships

Dam infrastructure

Water treatment works

Fight against smuggling & piracy

Passive border and coastal surveillance
